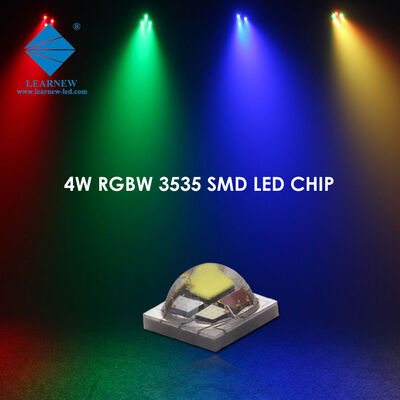

High Density LED Landscape Lighting / LED Stage Light 3535 5050 4Watt RGBW LED SMD Chip
Product Overview

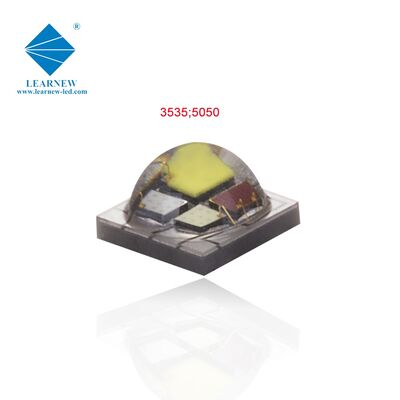

This ceramic stent packaged LED chip features a compact structure designed for surface mount technology. It delivers high luminous flux and efficiency with excellent current impact resistance. The chip offers superior thermal conductivity and extended service life. Custom current and voltage specifications are available based on your project requirements.
Technical Specifications
| Style |
SMD LED |
| Circuit |
1PCS in series 1PCS in parallel 4 circuit |
| Whole Size |
3.5×3.5mm |
| Voltage |
R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V |
| Lens |
R1.5mm |
| Substrate |
Ceramic |
Design Advantages
- Ceramic leadframe construction
- High ESD protection rating
- Standard A Class chips
- Excellent cost performance
- Gold wire bonding

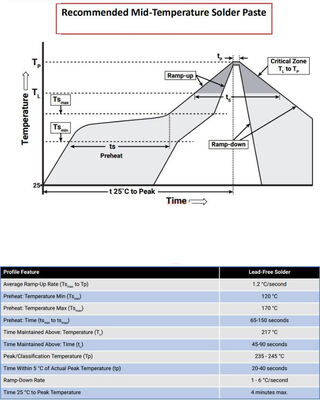

- Easy reflow soldering process
Detailed Product Images
Related UV LED Products
LEARNEW UV LED Chip Series
UVC LED 250-285nm (395-405nm): Ideal for hospitals, air conditioning systems, disinfection cabinets, water treatment equipment, water dispensers, sewage treatment plants, swimming pools, and food/beverage processing equipment. Also used in maternal/child supplies sterilization boxes, toothbrush sterilizers, and portable sterilizers.
UVB LED 305-315nm: Applied in medical industry for vitamin D3 production and treatment of metabolic bone diseases including osteoporosis.
UVA LED 365-395nm: Used for UV adhesive curing in LED growing markets, 3D printing, displays, electronic medical devices, and instrumentation. Also applied in UV coating curing for building materials, furniture, home appliances, automotive industries, and UV ink curing for printing/packaging applications.
Company Profile
Packaging & Shipping
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: Yes, absolutely it can be realized.
Q2: All the pictures are real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products and quantity. Our professional team will reply very soon (mostly within few hours).
Q4: Is there any discount for bulk orders?
A4: Yes, if you need bulk orders or customized products, we can provide wholesale pricing.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when placing the order. Shipping costs are based on your order's volume and weight and can be calculated accordingly.
Q6: How to place an order?
A6: Please feel free to send us an inquiry email or contact us by TradeManager online. We will reply within 24 hours (working days).
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75 working days. For samples, delivery could be as fast as same day.
